RESEARCH ARTICLE

Synthesis of Oxadiazolyl, Pyrazolyl and Thiazolyl Derivatives of Thiophene-2-Carboxamide as Antimicrobial and Anti-HCV Agents

Ola H. Rizk1 , 2 , * Open Modal Omaima G. Shaaban1 , 2 Abeer E. Abdel Wahab3
Authors Info & Affiliations
The Open Medicinal Chemistry Journal • 28 Apr 2017 • RESEARCH ARTICLE • DOI: 10.2174/1874104501711010038

Abstract

Introduction:

Three series of pyrazole, thiazole and 1,3,4-oxadiazole, derivatives were synthesized starting from 5-amino-4-(hydrazinocarbonyl)-3-methylthiophene-2-carboxamide (2).

Methods:

All compounds were investigated for their preliminary antimicrobial activity. They were proved to exhibit remarkable antimicrobial activity against Pseudomonas aeruginosa with insignificant activity towards Gram positive bacterial strains and fungi.

Results:

In-vitro testing of the new compounds on hepatitis-C virus (HCV) replication in hepatocellular carcinoma cell line HepG2 infected with the virus utilizing the reverse transcription polymerase chain reaction technique (RT-PCR) generally showed inhibition of the replication of HCV RNA (–) strands at low concentration, while, eight compounds; 3a, 6, 7a, 7b, 9a, 9b, 10a and 11b proved to inhibit the replication of HCV RNA (+) and (–) strands at very low concentration range 0.08-0.36 μg/mL.

Conclusion:

Compounds 7b and 11b displayed the highest anti-HCV and antimicrobial activities in this study.

Keywords: Synthesis, Thiophene-2-carboxamide, 1,3,4-Oxadiazole, Pyrazole, Antimicrobial activity, Antiviral activity.

INTRODUCTION

Hepatitis C virus (HCV) infection is a great global health issue with recent total population infection estimates of 1-3% [1, 2]. Egypt has the highest prevalence of Hepatitis C in the world, ranging from 6% to more than 40% among different regions [3]. HCV is believed to act as a carcinogen due to prevalence of hepatocellular carcinoma in patients infected with chronic active hepatitis. HCV causes chronic hepatic inflammation resulting in cellular disrupt which contribute to hepatocellular carcinoma [4]. Current therapies for HCV involve a combination of the nucleoside analog ribavirin and interferon-α [5]. This treatment regimen causes unfavorable side effects which often results in poor patient compliance [6]. Therefore, discovery of new anti HCV agents is urgently needed.

A literature survey revealed that thiophene nucleus was proved to be a core skeleton of several biologically active compounds [7-14]. Moreover, pyrazole, 1,3-thiazole and 1,3,4-oxadiazole moieties have been acknowledged to display various biological activities as antimicrobial [15-18], antitumor [19-22] in addition to antiviral [23-27] activities. Recently many research groups have paid attention for the synthesis of pyrazole, thiazole and oxadiazole due to their interesting pharmaceutical activities [28-31].

Encouraged by these findings, A new series of thiophene derivatives comprising the bioactive pyrazoles, thiazoles and 1,3,4-oxadiazoles at position 4 were synthesized and biologically evaluated.

MATERIALS AND METHODS

Chemistry

All reagents were purchased from commercial suppliers and purified by standard techniques. Melting points were determined in open glass capillaries using Thomas-Hoover melting point apparatus. Infrared spectra (IR) were recorded for KBr discs on Nicolet-800 FT-IR infrared spectrophotometer. NMR spectra were scanned on a Bruker 300 ultrashield spectrometer using tetramethylsilane (TMS) as internal standard and DMSO-d6 as solvent (chemical shifts are given in d/ppm). Splitting patterns were designated as follows: s: singlet, d: doublet, t: triplet, and m: multiplet. Mass spectra were run on a gas chromatograph/mass spectrometer Schimadzu GCMS-QP 2010 Plus (70 eV). Microanalyses were performed at the regional Center for Mycology and Biotechnology, El Azhar University and the found values were within ± 0.3% of the theoretical values. The reaction completion and purity of the compounds was followed by thin layer chromatography (TLC) on silica gel-precoated aluminium sheets (Type 60 GF254; Merck; Germany) and the spots were visualized by UV lamp at λ 254 nm for few seconds. The key intermediate 1 was prepared by Gütschow et al. [32]

5-Amino-4-(hydrazinocarbonyl)-3-Methylthiophene-2-Carboxamide (2)

A mixture of 1 (2.28 g, 10 mmol) and hydrazine hydrate 99% (4 mL, 80 mmol) in ethanol (10 mL) was heated under reflux for 24 h. The reaction mixture was cooled and the separated product was filtered, washed with ethanol, dried and crystallized from ethanol.

Yield: 62%, m.p.: 228-30oC. IR (KBr, cm-1): 3387, 3296, 3222, 3115 (NH2, NH), 1657 (C=O), 1624 (C=N), 1271, 1017 (C-S-C). 1H-NMR (DMSO-d6, ppm): 2.43 (s, 3H, CH3), 4.36 (s, 2H, NH2, D2O exchangeable), 7.61 (s, 2H, thiophene-C5-NH2, D2O exchangeable), 8.07 (s, 2H, CONH2, D2O exchangeable), 8.90 (s, 1H, NH, D2O exchangeable). 13C-NMR (DMSO-d6, ppm): 14.76 (CH3), 105.68 (thiophene C4), 111.44 (thiophene C2), 139.78 (thiophene C3), 163.62, 165.26 (2 C=O), 165.40 (thiophene C5). Anal. Calcd. (%) for C7H10N4O2S (214.24): C, 39.24; H, 4.70; N, 26.15. Found: C, 39.52; H, 5.12; N, 26.37.

5-Amino-3-Methyl-4-[(3-Methyl-5-Substituted-1H-pyrazol-1-yl)Carbonyl]Thiophene-2-Carboxamide (3a,b)

A mixture of 2 (0.214 g, 1 mmol) and acetylacetone or benzoylacetone (1 mmol) in absolute EtOH (10 mL) containing 3 drops glacial acetic acid was heated under reflux for 12 h. The reaction mixture was allowed to attain room temperature and the separated product was filtered, dried and crystallized from DMF.

5-Amino-3-Methyl-4-[(3,5-Dimethyl-1H-Pyrazol-1-yl)Carbonyl]Thiophene-2-Carboxamide (3a)

Yield: 64%, m.p.: 146-8oC. IR (KBr, cm-1): 3377, 3258 (NH2), 1653 (C=O), 1587 (C=N), 1218, 1022 (C-S-C). 1H-NMR (DMSO-d6, ppm): 2.15 (s, 3H, pyrazole-C3-CH3), 2.59 (s, 3H, CH3), 2.85 (s, 3H, pyrazole-C5-CH3), 6.12 (s, 1H, pyrazole-C4-H), 7.93 (s, 2H, thiophene-C5-NH2, D2O exchangeable), 8.24 (s, 2H, CONH2, D2O exchangeable). Anal. Calcd. (%) for C12H14N4O2S (278.33): C, 51.78; H, 5.07; N, 20.13. Found: C, 51.72; H, 5.47; N, 20.22.

5-Amino-3-Methyl-4-[(3-Methyl-5-Phenyl-1H-Pyrazol-1-yl) Carbonyl]Thiophene-2-Carboxamide (3b)

Yield: 68%, m.p.: 108-10oC. IR (KBr, cm-1): 3368, 3234 (NH2), 1652 (C=O), 1577 (C=N), 1218, 1021 (C-S-C). 1H-NMR (DMSO-d6, ppm): 2.25 (s, 3H, pyrazole-C3-CH3), 2.60(s, 3H, CH3), 6.42 (s, 1H, pyrazole-C4-H), 7.26 (t, 1H, J = 7.5 Hz, phenyl-C4-H), 7.38 (t, 2H, J = 7.5 Hz, phenyl-C3&5-H), 7.73 (d, J = 7.5 Hz, 2H, phenyl-C2,6-H),7.90 (s, 2H, thiophene-C5-NH2, D2O exchangeable), 8.14 (s, 2H, CONH2, D2O exchangeable). Anal. Calcd. (%) for C17H16N4O2S (340.4): C, 59.98; H, 4.74; N, 16.46. Found: C, 59.97; H, 5.07; N, 16.58.

Methyl 1-[(2-Amino-5-Carbamoyl-4-Methylthiophen-3-yl) Carbonyl]-5-Phenyl-4,5-Dihydro-1H-Pyrazole-3-Carboxylate (4)

A mixture of 2 (0.214 g, 1 mmol) and methyl pyruvate (1 mmol) in absolute EtOH (10 mL) containing 3 drops glacial acetic acid was refluxed for 10 h, and then cooled. The separated solid product was filtered, dried and crystallized from DMF.

Yield: 64%, m.p.: 114-6°C. IR (KBr, cm-1): 3413, 3314 (NH2), 1662 (C=O), 1582 (C=N), 1255, 1020 (C-S-C), 1175, 1036 (C-O-C). 1H-NMR (DMSO-d6, ppm): 2.62 (s, 3H, CH3), 3.87(s, 3H, COOCH3), 6.42 (s, 1H, pyrazole-C4-H), 7.19 (t, 1H, J = 7.5 Hz, phenyl-C4-H), 7.21 (t, 2H, J = 7.5 Hz, phenyl-C3&5-H), 7.63 (d, J = 7.5 Hz, 2H, phenyl-C2,6-H),7.82 (s, 2H, thiophene-C5-NH2, D2O exchangeable), 8.04 (s, 2H, CONH2, D2O exchangeable). Anal. Calcd. (%) for C18H16N4O4S (384.41): C, 56.24; H, 4.20; N, 14.57. Found: C, 56.31; H, 4.52; N, 14.71.

5-Amino-4-[(3,5-Dioxopyrazolidin-1-yl) Carbonyl]-3-Methylthiophene-2-Carboxamide (5)

A mixture of 2 (0.214 g, 2.0 mmol) and diethylmalonate (3.27 g, 20 mmol, 3.1 mL) was heated under reflux for 4 h. then left to cool. The obtained precipitate was filtered, dried and crystallized from ethanol / water (4:1).

Yield: 70%, m.p.: 210-12oC. IR (KBr, cm-1): 3386, 3239 (NH2, NH), 1658, 1675(C=O), 1607 (C=N), 1249, 1025 (C-S-C). 1H-NMR (DMSO-d6, ppm): 1.86 (s, 2H, pyrazolidinyl-C4-H), 2.48 (s, 3H, CH3), 7.70 (s, 2H, thiophene-C5-NH2, D2O exchangeable), 9.41(s, 2H, CONH2, D2O exchangeable), 9.71 (s, 1H, pyrazolidinyl-C2-NH, D2O exchangeable). 13C-NMR (DMSO-d6, ppm): 14.74 (CH3), 59.72 (pyrazole C4), 105.88 (thiophene C4), 110.24 (thiophene C2), 141.87 (thiophene C3), 163.50, 165.32, 165.55, 165.58 (4 C=O), 168.83 (thiophene C5). EI-MS m/z: 282 (M+ /1.03%), 57 (100%). Anal. Calcd. (%) for C10H10N4O4S (282.28): C, 42.55; H, 3.57; N, 19.85. Found: C, 42.63; H, 3.55; N, 20.08.

5-Amino-3-Methyl-4-[(3-Methyl-5-oxo-4,5-Dihydro-1H-Pyrazol-1-yl) Carbonyl]Thiophene-2-Carboxamide (6)

A mixture of 2 (0.214 g, 1 mmol) and ethylacetoacetate (1 mmol) in absolute EtOH (10 mL) containing 3 drops of glacial acetic acid was refluxed for 10 h, and the reaction mixture was left to attain room temperature. The separated product was filtered, dried and crystallized from ethanol.

Yield: 65%, m.p.: 208-10oC. IR (KBr, cm-1): 3378, 3272 (NH2), 1694, 1658 (C=O), 1588 (C=N), 1248, 1034 (C-S-C). 1H-NMR (DMSO-d6, ppm): 1.85 (s, 2H, pyrazol-C4-H), 2.22 (s, 3H, pyrazole-C3-CH3), 2.48 (s, 3H, CH3), 9.85 (s, 2H, thiophene-C5-NH2, D2O exchangeable), 11.05 (s, 2H, CONH2, D2O exchangeable). Anal. Calcd. (%) for C11H12N4O3S (280.3): C, 47.13; H, 4.32; N, 19.99. Found: C, 47.32; H, 4.37; N, 20.14.

6-Methyl-2-Substituted-5-oxo-4,5-Dihydro-1H-Thieno [2,3-e][1, 2, 4]Triazepine-7-Carboxamide (7a-c)

Compounds 7a-c were prepared by refluxing a mixture of 2 (0.214 g, 1 mmol) and the appropriate aromatic aldehyde (1 mmol) in absolute ethanol (20 mL) for 4 h. The reaction mixture was left to attain room temperature and the obtained products were filtered, dried and crystallized from the appropriate solvent.

6-Methyl-2-(4-Nitrophenyl)-5-oxo-4,5-Dihydro-1H-Thieno[2,3-e][1, 2, 4] Triazepine-7-Carboxamide (7a)

Yield: 74%, m.p.: 278-80oC (DMF). IR (KBr, cm-1): 3434, 3316, 3152 (NH2, NH), 1666 (C=O), 1632, 1579 (C=N), 1509, 1337 (NO2), 1267, 1025 (C-S-C). 1H-NMR (DMSO-d6, ppm): 2.61 (s, 3H, CH3), 7.78 (s, 2H, thiophene-C5-NH2, D2O exchangeable), 7.95 (d, J = 8.9 Hz, 2H, phenyl-C2,6-H), 8.15 (s, 2H, CONH2, D2O exchangeable), 8.20 (s, 1H, NH, D2O exchangeable), 8.26 (d, J = 8.9 Hz, 2H, phenyl-C3,5-H), 11.12 (s, 1H, NH, D2O exchangeable). 13C-NMR (DMSO-d6, ppm): 14.75 (CH3), 106.05 (thienotriazepine C3e), 110.16 (thienotriazepine C7), 124.46 (4-nitrophenyl C3,5), 128.31 (4-nitrophenyl C2,6), 132.14 (4-nitrophenyl C1), 141.29 (thienotriazepine C6), 147.50 (thienotriazepine C2), 147.92 (4-nitrophenyl C4), 165.06, 165.34 (2 C=O), 170.65 (thienotriazepine C2e). Anal. Calcd. (%) for C14H11N5O4S (345.33): C, 48.69; H, 3.21; N, 20.28. Found: C, 48.82; H, 3.18; N, 20.45.

6-Methyl-2-(4-Methoxyphenyl)-5-Oxo-4,5-Dihydro-1H-Thieno[2,3-e][1, 2, 4] Triazepine-7-Carboxamide (7b)

Yield: 76%, m.p.: 160-2oC (ethanol). IR (KBr, cm-1): 3416, 3296, 3226 (NH2, NH), 1675 (C=O), 1603 (C=N), 1250, 1021 (C-S-C), 1167, 1117 (C-O-C). 1H-NMR (DMSO-d6, ppm): 2.59 (s, 3H, CH3), 3.79 (s, 3H, OCH3), 6.98 (d, J = 8.7 Hz, 2H, phenyl-C2,6-H), 7.65 (d, J = 8.7 Hz, 2H, phenyl-C3,5-H), 7.72 (s, 2H, thiophene-C5-NH2, D2O exchangeable), 7.98 (s, 2H, CONH2, D2O exchangeable), 8.05 (s, 1H, NH, D2O exchangeable), 11.16 (s, 1H, NH, D2O exchangeable). 13C-NMR (DMSO-d6, ppm): 14.77 (CH3), 55.73 (OCH3), 105.60 (thienotriazepine C3e), 109.16 (thienotriazepine C7), 117.34 (4-methoxyphenyl C3,5), 122.14 (4-methoxyphenyl C1), 129.49 (4-methoxyphenyl C2,6), 138.05 (thienotriazepine C6), 146.04 (thienotriazepine C2), 158.77 (4-methoxyphenyl C4), 165.02, 165.59 (2 C=O), 170.91 (thienotriazepine C2e). EI-MS m/z: 329 (M+ /3.81%),330 (0.06), 139 (100%). Anal. Calcd. (%) for C15H14N4O3S (330.36): C, 54.53; H, 4.27; N, 16.96. Found: C, 54.72; H, 4.46; N, 17.13.

6-Methyl-2-(3,4-Dimethoxy)-5-Oxo-4,5-Dihydro-1H-Thieno [2,3-e][1, 2, 4] Triazepine-7-Carboxamide (7c)

Yield: 76%, m.p.: 180-2oC (ethanol/water, 4:1). IR (KBr, cm-1): 3383, 3279, 3214 (NH2, NH), 1658 (C=O), 1598 (C=N), 1269, 1024 (C-S-C), 1166, 1055 (C-O-C). 1H-NMR (DMSO-d6, ppm): 2.70 (s, 3H, CH3), 3.79,3.82 (2s, each 3H, 2OCH3), 7.0 (d, J = 8.35 Hz, 1H, phenyl-C6-H), 7.18 (d, J = 8.35 Hz, 1H, phenyl-C5-H), 7.33 (s, 1H, phenyl-C2-H), 7.71(s, 2H, thiophene-C5-NH2, D2O exchangeable), 7.98 (s, 2H, CONH2, D2O exchangeable), 8.03 (s, 1H, NH, D2O exchangeable), 11.03 (s, 1H, NH, D2O exchangeable). Anal. Calcd. (%) for C16H16N4O4S (360.39): C, 53.32; H, 4.47; N, 15.55. Found: C, 53.41; H, 4.50; N, 15.71.

5-Amino-3-Methyl-4-{[2-(Substitute Dcarbamothioyl) Hydrazino]Carbonyl}Thiophene-2-Carboxamide (9a, b)

To a suspension of 2 (0.214 g, 1 mmol) in absolute ethanol (20 ml), the appropriate isothiocyanate (1.1 mmol) was drop wisely added over a period of 15 minutes. The reaction mixture was heated under reflux for 7 h. and left to attain room temperature. The obtained precipitate was filtered, dried and crystallized from DMF/H2O (5:2).

5-Amino-3-Methyl-4-{[2-(Phenylcarbamothioyl) Hydrazino] Carbonyl} Thiophene-2-Carboxamide (9a)

Yield: 72%, m.p.: 205-7oC. IR (KBr, cm-1): 3380, 3268, 3170 (NH2, NH), 1653 (C=O), 1588 (C=N), 1529, 1331, 1122, 932 (NCS), 1242, 1021 (C-S-C). 1H-NMR (DMSO-d6, ppm): 2.59 (s, 3H, CH3), 6.99 (t, 1H, J = 7.6 Hz, phenyl-C4-H), 7.34 (t, 2H, J = 7.6 Hz, phenyl-C3&5-H), 7.56 (d, J = 7.6 Hz, 2H, phenyl-C2,6-H), 7.74 (s, 1H, CSNH, D2O exchangeable), 7.80 (s, 2H, thiophene-C5-NH2, D2O exchangeable), 7.84 (s, 1H, CONHNH, D2O exchangeable), 7.95 (s, 2H, CONH2, D2O exchangeable), 10.48 (s, 1H, CONHNH, D2O exchangeable). Anal. Calcd. (%) for C14H15N5O2S2 (349.43): C, 48.12; H, 4.33; N, 20.04. Found: C, 48.33; H, 4.61; N, 20.21.

5-Amino-3-Methyl-4-({2-[(4-Methylphenyl) Carbamothioyl] Hydrazino} Carbonyl)Thiophene-2-Carboxamide (9b)

Yield: 76%, m.p.: 202-4oC. IR (KBr, cm-1): 3377, 3258, 3170 (NH2, NH), 1652 (C=O), 1587 (C=N), 1529, 1331, 1123, 931 (NCS), 1218, 1022 (C-S-C). 1H-NMR (DMSO-d6, ppm): 2.25 (s, 3H, phenyl-C4-CH3), 2.58 (s, 3H, CH3), 6.99 (t, 1H, J = 7.6 Hz, phenyl-C4-H), 7.34 (t, 2H, J = 7.6 Hz, phenyl-C3&5-H), 7.56 (d, J = 7.6 Hz, 2H, phenyl-C2,6-H), 7.63 (s, 1H, CSNH, D2O exchangeable), 7.83 (s, 2H, thiophene-C5-NH2, D2O exchangeable), 7.87 (s, 1H, CONHNH, D2O exchangeable), 8.10 (s, 2H, CONH2, D2O exchangeable), 10.36 (s, 1H, CONHNH, D2O exchangeable). EI-MS m/z: 363 (M+ /1.90%), 64 (100%). Anal. Calcd. (%) for C15H17N5O2S2 (363.46): C, 49.57; H, 4.71; N, 19.27. Found: C, 49.87; H, 4.97; N, 19.53.

5-Amino-4-{[(2Z)-2-(3,4-Disubstituted-1,3-Thiazol-2(3H)-Ylidene)Hydrazino]Carbonyl}-3-Methylthiophene-2-Carboxamide (10a-f)

A mixture of 9a or 9b (1 mmol) and the appropriate phenacyl bromide (1 mmol) in absolute ethanol (20 ml) was heated under reflux for 20 h. Anhydrous sodium acetate (0.1 g) was then added and the reaction mixture was heated for further 30 minutes. The reaction mixture was cooled and poured onto ice-cold water. The separated product was filtered, washed with water and crystallized from the proper solvent.

5-Amino-4-{[(2Z)-2-(3,4-Diphenyl-1,3-Thiazol-2(3H)-Ylidene)Hydrazino]Carbonyl}-3-Methylthiophene-2-Carboxamide (10a)

Yield: 73%, m.p.: 195-7oC (ethanol). IR (KBr, cm-1): 3378, 3276, 3170 (NH2, NH), 1654 (C=O), 1583 (C=N), 1524, 1372, 1098, 868 (NCS), 1231, 1039 (C-S-C). 1H-NMR (DMSO-d6, ppm): 2.43 (s, 3H, CH3), 6.37 (s, 1H, thiazoline-C3-H), 6.95-7.53 (m, 10H, 2 phenyl-H), 7.76 (s, 2H, thiophene-C5-NH2, D2O exchangeable), 7.96 (s, 2H, CONH2, D2O exchangeable), 10.53 (s, 1H, CONH, D2O exchangeable). Anal. Calcd. (%) for C22H19N5O2S2 (449.55): C, 58.78; H, 4.26; N, 15.58. Found: C, 58.87; H, 4.30; N, 15.73.

5-Amino-4-({(2Z)-2-[4-(4-Bromophenyl)-3-Phenyl-1,3-Thiazol-2(3H)-Ylidene]Hydrazino}Carbonyl)-3-Methylthiophene-2-Carboxamide (10b)

Yield: 76%, m.p.: 142-4oC (ethanol/water, 3:2). IR (KBr, cm-1): 3404, 3286, 3169 (NH2, NH), 1658 (C=O), 1582 (C=N), 1523, 1325, 1097, 868 (NCS), 1229, 1009 (C-S-C). 1H-NMR (DMSO-d6, ppm): 2.44 (s, 3H, CH3), 6.45 (s, 1H, thiazoline-C3-H), 6.94 (d, J = 8.4 Hz, 2H, phenyl-C2,6-H), 7.03 (t, 1H, J = 8.4 Hz, phenyl-C4-H), 7.34 (t, 2H, J = 8.4 Hz, phenyl-C3&5-H), 7.45 (d, J = 8.4 Hz, 2H, 4-bromophenyl-C2,6-H), 7.63 (d, J = 8.4 Hz, 2H, 4-bromophenyl-C2,6-H), 7.78 (s, 2H, thiophene-C5-NH2, D2O exchangeable), 7.97 (s, 2H, CONH2, D2O exchangeable), 10.53 (s, 1H, CONH, D2O exchangeable). 13C-NMR (DMSO-d6, ppm): 14.71 (CH3), 105.62 (thiophene C4), 106.17 (thiazolidine C3), 108.69 (thiophene C2), 121.29 (phenyl C2,6), 122.76 (4-bromophenyl C4), 123.58 (phenyl C4), 129.58 (4-bromophenyl C1), 129.96 (4-bromophenyl C2,6), 130.11 (phenyl C3,5), 131.83 (4-bromophenyl C3,5), 138.73 (phenyl C1), 143.70 (thiophene C3), 150.63 (thiazolidine C4), 157.05 (thiazolidine C1), 162.37, 165.18 (2 C=O), 165.93 (thiophene C5). EI-MS m/z: 528 (M+ /2.25%), 125 (100%). Anal. Calcd. (%) for C22H18BrN5O2S2 (528.44): C, 50.00; H, 3.43; N, 13.25. Found: C, 50.13; H, 3.41; N, 13.37.

5-Amino-4-({(2Z)-2-[4-(4-Methoxyphenyl)-3-Phenyl-1,3-Thiazol-2(3H)-Ylidene]Hydrazino}Carbonyl)-3-Methylthiophene-2-Carboxamide (10c)

Yield: 72%, m.p.: 148-50oC (ethanol). IR (KBr, cm-1): 3404, 3286, 3169 (NH2, NH), 1658 (C=O), 1582 (C=N), 1523, 1325, 1097, 868 (NCS), 1229, 1009 (C-S-C) 1167, 1117 (C-O-C). 1H-NMR (DMSO-d6, ppm): 2.45 (s, 3H, CH3), 3.81 (s, 3H, OCH3), 6.25 (s, 1H, thiazoline-C3-H), 6.94-7.45 (m, 9H, phenyl & Ar-H), 7.75 (s, 2H, thiophene-C5-NH2, D2O exchangeable), 7.89 (s, 2H, CONH2, D2O exchangeable), 10.46 (s, 1H, CONH, D2O exchangeable). Anal. Calcd. (%) for C23H21N5O3S2 (479.57): C, 57.60; H, 4.41; N, 14.60. Found: C, 57.78; H, 4.46; N, 14.87.

5-Amino-4-({(2Z)-2-[3-(4-Methylphenyl)-4-Phenyl-1,3-Thiazol-2(3H)-Ylidene]Hydrazino}Carbonyl)-3-Methylthiophene-2-Carboxamide (10d)

Yield: 71%, m.p.: 203-205oC (ethanol). IR (KBr, cm-1): 3389, 3277, 3166 (NH2, NH), 1660 (C=O), 1588 (C=N), 1525, 1371, 1104, 872 (NCS), 1231, 1043 (C-S-C). 1H-NMR (DMSO-d6, ppm): 2.26 (s, 3H, phenyl CH3), 2.43 (s, 3H, CH3), 6.42 (s, 1H, thiazoline-C3-H), 6.91-7.55 (m, 9H, phenyl & Ar-H), 7.73 (s, 2H, thiophene-C5-NH2, D2O exchangeable), 7.86 (s, 2H, CONH2, D2O exchangeable), 10.50 (s, 1H, CONH, D2O exchangeable). Anal. Calcd. (%) for C23H21N5O2S2 (463.58): C, 59.59; H, 4.57; N, 15.11. Found: C, 59.72; H, 4.55; N, 15.32.

5-Amino-4-({(2Z)-2-[4-(4-Bromophenyl)-3-(4-Methylphenyl)-1,3-Thiazol-2(3H)-Ylidene]Hydrazino} Carbonyl)-3-Methylthiophene-2-Carboxamide (10e)

Yield: 73%, m.p.: 190-2oC (ethanol/water, 4:1). IR (KBr, cm-1): 3392, 3285, 3158 (NH2, NH), 1649 (C=O), 1586 (C=N), 1519, 1327, 1101, 869 (NCS), 1233, 1041 (C-S-C). 1H-NMR (DMSO-d6, ppm): 2.27 (s, 3H, phenyl CH3), 2.43 (s, 3H, CH3), 6.43 (s, 1H, thiazoline-C3-H), 6.83 (d, J = 8.2 Hz, 2H, 4-bromophenyl-C2,6-H), 7.14 (d, 2H, J = 8.2 Hz, 4-bromophenyl-C3,5-H), 7.44 (d, 2H, J = 8.4 Hz, 4-methylphenyl-C3,5-H), 7.63 (d, J = 8.4 Hz, 2H, 4-methylphenyl-C2,6-H), 7.77 (s, 2H, thiophene-C5-NH2, D2O exchangeable), 7.96 (s, 2H, CONH2, D2O exchangeable), 10.49 (s, 1H, CONH, D2O exchangeable). Anal. Calcd. (%) for C23H20BrN5O2S2 (542.47): C, 50.92; H, 3.72; N, 12.91. Found: C, 50.97; H, 3.74; N, 13.12.

5-Amino-4-({(2Z)-2-[4-(4-Methoxyphenyl)-3-(4-Methylphenyl)-1,3-Thiazol-2(3H)-Ylidene]Hydrazino} Carbonyl)-3 Methylthiophene-2-Carboxamide (10f)

Yield: 69%, m.p.: 184-6oC (ethanol). IR (KBr, cm-1): 3388, 3265, 3190 (NH2, NH), 1658 (C=O), 1590 (C=N), 1525, 1325, 1105, 888 (NCS), 1235, 1021 (C-S-C) 1170, 1112 (C-O-C). 1H-NMR (DMSO-d6, ppm): 2.24 (s, 3H, phenyl CH3), 2.47 (s, 3H, CH3), 3.90 (s, 3H, OCH3), 6.34 (s, 1H, thiazoline-C3-H), 6.97-7.35 (m, 8H, 2 Ar-H), 7.76 (s, 2H, thiophene-C5-NH2, D2O exchangeable), 7.89 (s, 2H, CONH2, D2O exchangeable), 10.49 (s, 1H, CONH, D2O exchangeable). Anal. Calcd. (%) for C24H23N5O3S2 (493.6): C, 58.40; H, 4.70; N, 14.19. Found: C, 58.53; H, 4.68; N, 14.32.

5-Amino-3-Methyl-4-{[(2Z)-2-(4-Oxo-3-Substituted-1,3-Thiazolidin-2-ylidene)Hydrazino]Carbonyl} Thiophene-2-Carboxamide(11a, b)

A mixture of 9a or b (1 mmol) and ethyl bromoacetate (0.2 g, 0.13 mL, 1.1 mmol) in absolute ethanol (20 mL) was heated under reflux for 24 h. Anhydrous sodium acetate (0.1 g) was added and the reaction mixture was heated for further 30 minutes. The reaction mixture was cooled and poured onto ice-cold water. The separated product was filtered, washed with water and crystallized from dioxane.

5-Amino-3-Methyl-4-{[(2Z)-2-(4-Oxo-3-Phenyl-1,3-Thiazolidin-2-Ylidene)Hydrazino]Carbonyl}Thiophene-2-Carboxamide(11a)

Yield: 58%, m.p.: 194-6 oC. IR (KBr, cm-1): 3392, 3255, 3170 (NH2, NH), 1658, 1640 (C=O), 1587 (C=N), 1535, 1326, 1105, 912 (NCS), 1227, 1059 (C-S-C). 1H-NMR (DMSO-d6, ppm): 2.60 (s, 3H, CH3), 4.78 (s, 2H, thiazolidine-C3-H), 7.01-7.63 (m, 5H, phenyl-H), 7.68 (s, 2H, thiophene-C5-NH2, D2O exchangeable), 7.82 (s, 2H, CONH2, D2O exchangeable), 10.36 (s, 1H, CONH, D2O exchangeable). Anal. Calcd. (%) for C16H15N5O3S2 (389.45): C, 49.34; H, 3.88; N, 17.98. Found: C, 49.68; H, 4.01; N, 18.21.

5-Amino-3-Methyl-4-({(2Z)-2-[3-(4-Methylphenyl)-4-Oxo-1,3-Thiazolidin-2-Ylidene]Hydrazino}Carbonyl) Thiophene-2-Carboxamide (11b)

Yield: 61%, m.p.: 202-4 oC. IR (KBr, cm-1): 3386, 3245, 3175 (NH2, NH), 1670, 1642 (C=O), 1590 (C=N), 1537, 1326, 1109, 918 (NCS), 1225, 1075 (C-S-C). 1H-NMR (DMSO-d6, ppm): 2.26 (s, 3H, phenyl CH3), 2.58 (s, 3H, CH3) 4.88 (s, 2H, thiazolidine-C3-H), 7.12 (d, 2H, J = 8.4 Hz, 4-methylphenyl-C3,5-H), 7.51 (d, J = 8.4 Hz, 2H, 4-methylphenyl-C2,6-H),7.70 (s, 2H, thiophene-C5-NH2, D2O exchangeable), 7.79 (s, 2H, CONH2, D2O exchangeable), 10.32 (s, 1H, CONH, D2O exchangeable). Anal. Calcd. (%) for C17H17N5O3S2 (403.48): C, 50.61; H, 4.25; N, 17.36; Found: C, 50.94; H, 4.43; N, 17.63.

5-Amino-3-Methyl-4-[5-Substituted-1,3,4-Oxadiazol-2-yl] Thiophene-2-Carboxamide (12a,b)

A solution of 9a or 9b (1 mmol) in dry dioxane (10 ml) was treated with freshly prepared yellow HgO (0.26 g, 1.2 mmol). The reaction mixture was refluxed for 5 h. and filtered while hot to remove the precipitated black HgS. The filtrate was evaporated and the remaining residue was crystallized from dioxane.

5-Amino-3-Methyl-4-[5-(Phenylamino)-1,3,4-Oxadiazol-2-yl] Thiophene-2-Carboxamide (12a)

Yield: 70%, m.p.: 232-4oC. IR (KBr, cm-1): 3396, 3252, 3167 (NH2, NH), 1683 (C=O), 1571 (C=N), 1264, 1022 (C-S-C), 1124, 1073 (C-O-C). 1H-NMR (DMSO-d6, ppm): 2.56 (s, 3H, CH3), 7.12-7.48 (m, 5H, phenyl-H), 7.65 (s, 2H, thiophene-C5-NH2, D2O exchangeable), 7.87 (s, 2H, CONH2, D2O exchangeable), 10.42 (s, 1H, NH, D2O exchangeable). Anal. Calcd. (%) for C14H13N5O2S (315.35): C, 53.32; H, 4.16; N, 22.21. Found: C, 53.45; H, 4.14; N, 22.35.

5-Amino-3-Methyl-4-{5-[(4-Methylphenyl) Amino]-1,3,4-Oxadiazol-2-yl}Thiophene-2-Carboxamide(12b)

Yield: 72%, m.p.: 226-8oC. IR (KBr, cm-1): 3395, 3254, 3155 (NH2, NH), 1660 (C=O), 1586 (C=N), 1250, 1032 (C-S-C), 1118, 1072 (C-O-C). 1H-NMR (DMSO-d6, ppm): 2.26 (s, 3H, phenyl CH3), 2.59 (s, 3H, CH3), 7.15 (d, 2H, J = 8.4 Hz, 4-methylphenyl-C2&6-H), 7.46 (d, J = 8.4 Hz, 2H, 4-methylphenyl-C3,5-H), 7.82 (s, 2H, thiophene-C5-NH2, D2O exchangeable), 7.98 (s, 2H, CONH2, D2O exchangeable), 10.35 (s, 1H, NH, D2O exchangeable). Anal. Calcd. (%) for C15H15N5O2S (329.38): C, 54.70; H, 4.59; N, 21.26. Found: C, 54.84; H, 4.55; N, 21.39.

BIOLOGICAL EVALUATION

Anti-hepatitis C Virus Activity

Evaluation of Cytotoxicity Using Neutral Red Uptake Assay

Isolation of lymphocytes from whole human blood was done using gradient separation by Ficoll-PagueTM Plus (MP Biomedicals, France), ˜10 × 104 cells were seeded per well in 96 well plates and the plates were incubated in RPMI (Roswell Park Memorial Institute) media containing different concentrations of the tested compounds for 24, 48, 72 and 96 h. The fraction of viable lymphocyte cells was measured by the Neutral red assay [33]. The neutral red assay determines the accumulation of the neutral red dye in the lysosomes of viable cells [34]. Following exposure to different concentrations of tested compounds, cells were incubated for 3 h with neutral red dye (40μg/ml) dissolved in culture media RPMI. Cells were then washed with phosphate buffered saline (PBS) then 1 ml of elution medium (ethanol/glacial acetic acid /water 50/1/ 49%) was added followed by gentle shaking for 10 min so that complete dissolution was achieved. Aliquots of the resulting solutions were transferred to 96-well plates and absorbance at 490 nm was recorded using microliter plate reader spectrophotometer (Biotek, U.S.A). The assay was conducted three times. The IC50 (the concentration resulting in 50% death of cells) and EC99 (concentration of the compound that maintained 99% viability of cells) were calculated using GraphPad Prism (GraphPad Software Inc., San Diego, CA) [35] (Table 1).

Cell Culture

In the last few years, a number of cell culture systems have been developed that support reliable and efficient progression of this virus. Among several human hepatocyte cell lines analyzed, the hepatocellular carcinoma HepG2 cell line was found to be the most susceptible to HCV infection [36]. HepG2 cells were washed twice with RPM11640 media supplemented with 200μM L-glutamine and 25μM HEPES buffer; N-[2-hydroxyethyl]piperazine-N`-[2-ethanesulphonic acid] (Lonza). The cells were suspended at 2 X 105 cells/ mL in RPM1 culture media (RPM1 supplemented media, 10% fetal bovine serum (FBS); Gibco-BRL). The cells were left to adhere on the polystyrene 6-well plates for 4 h in an incubator (37°C, 5% CO2, 95% humidity). The cells were washed twice from debris and dead cells by using RPM1 supplemented media. HepG2 cell culture was prepared as discussed, then infected with HCV-infected serum in RPMI culture medium. Each of the tested compounds was added at the specified EC99 Table (1). Positive and negative control cultures were included. The positive strand and its replicating form (negative strand) were detected by reverse transcription-polymerase chain reaction (RT-PCR) using HCV specific primers to the 5'-untranslated region of the virus.

Qualitative In-vitro Anti-HCV Screening

RNA Extraction and RT-PCR of HCV RNA

Total RNA was extracted from HepG2 HCV-infected cells as well as from HepG2 infected cells that are treated with the test compounds using the method described by El-Awady et al. [37]. Briefly, culture cells were mixed with 200µLof 4M guanidinium isothiocyanate containing 25 mM sodium citrate, 0.5% sarcosyl, 0.1 Mβ- mercaptoethanol, and 100 µL sodium acetate. The lysed cells were mixed with an equal volume mixture of water-saturated phenol, chloroform, and isoamyl alcohol. After vortexing of the sample, the mixture was centrifuged at 14 K rpm for 10 min at 4°C. The aqueous layer was collected and mixed with an equal volume of isopropanol. After incubation at –20°C overnight, RNA was precipitated by centrifugation at14 K rpm for 30 min at 4oC and the precipitated RNA was washed twice with 70% ethanol. The complimentary DNA (cDNA) and the first PCR reaction of the nested PCR detection system for the HCV RNA was performed in a 50 µL volume single-step reaction using the Ready-To-Go RT-PCR beads (Healthcare Life Sciences, USA), 10 µM from each of the RT downstream primer, PCR forward primer and reverse primer P2. The thermal cycling protocol was manipulated as follows: 30 min at 42oC for cDNA synthesis followed by 5 min at 95oC and 30 cycles of 1 min at 94°C, 1 min at 55oC and 1 min at 72oC. The nested PCR amplification was performed in 50 µL reaction mixture containing 0.2 mM from each dNTP, 10 µM from each of the reverse nested primer and the forward nested primer, two units of taq DNA polymerase (Promega, Madison, WI, USA), 10 µL from the RT-PCR reaction in a 1X buffer supplied by the Vendor. A fragment of 174bp length was identified in positive samples.

Antimicrobial Screening

Inhibition-zone Measurements

All the synthesized compounds were evaluated by the agar cup diffusion technique [38-40] using a 1 mg/mL solution in DMSO. The test organisms were Staphylococcus aureus (DSM 1104) and Bacillus subtilis (ATCC 6633) as Gram-positive bacteria; Escherichia coli (ATCC 11775) and Pseudomonas aeruginosa (ATCC 10145) as Gram-negative bacteria. Candida albicans (DSM 70014) was also used as a representative for fungi. Each 100 mL of sterile molten agar (at 45oC) received 1 mL of 6 h-broth culture and then the seeded agar was poured into sterile Petri dishes. Cups (8 mm in diameter) were cut in the agar. Each cup received 0.1 mL of the 1 mg/mL solution of the test compounds. The plates were then incubated at 37°C for 24 h or, in case of C. albicans, for 48 h. A control using DMSO without the test compound was included for each organism. Ampicillin was used as standard antibacterial, while clotrimazole was used as antifungal reference. The resulting inhibition zones are recorded in Table (2).

Minimal Inhibitory Concentration (MIC) Measurement

The minimal inhibitory concentrations (MIC) of the most active compounds were measured using the twofold serial broth dilution method [39, 40]. The test organisms were grown in their suitable broth: 24 h for bacteria and 48 h for fungi at 37oC. Twofold serial dilutions of solutions of the test compounds were prepared using 200, 100, 50, 25, and 12.5 µg/mL. The tubes were then inoculated with the test organisms; each 5 mL received 0.1 mL of the above inoculum and were incubated at 37°C for 48 h. Then, the tubes were observed for the presence or absence of microbial growth. The MIC values of the prepared compounds are listed in Table 3.

Minimal Bactericidal Concentration (MBC) Measurement

MIC tests were always extended to measure the MBC as follows: A loop-full from the tube not showing visible growth (MIC) was spread over a quarter of Müller-Hinton agar plate. After 18 h of incubation, the plates were examined for growth. Again, the tube containing the lowest concentration of the test compound that failed to yield growth on subculture plates was judged to contain the MBC of that compound for the respective test organism (Table 3).

RESULTS AND DISCUSSION

Chemistry

Synthesis of the intermediate and target compounds are illustrated in schemes (1 and 2).

In scheme (1), the starting ester (1) [32] was synthesized by heating a mixture of acetoacetamide, ethyl cyanoacetate and sulfur in the presence of morpholine. Heating the ester 1 with hydrazine hydrate in ethanol gave rise to the hydrazide 2. Condensation of the hydrazide 2 with acetyl acetone or benzoylacetone in ethanol containing glacial acetic acid afforded the corresponding 3,5-dimethylpyrazole 3a and 3-methyl-5-phenylpyrazole 3b. The pyrazole derivative 4 was prepared by heating the acid hydrazide 2 with ethyl pyruvate in ethanol containing glacial acetic acid. The 3,5-dioxopyrazolidine derivative 5 was successfully achieved by heating 2 with diethylmalonate. On the other hand, refluxing of 2 with ethyl acetoacetate in ethanol containing glacial acetic acid gave the required 5-oxo-4,5-dihydro-1H-pyrazole derivative 6. The chemical structure of compounds 3a, b, 4, 5 and 6 were verified by analytical and spectral data.

Surprisingly, heating of the hydrazide 2 with aromatic aldehydes in ethanol containing glacial acetic acid yielded the 1,2,4 triazepine derivatives 7a-c instead of the expected hydrazones 8a-c. 1H-NMR spectra of these compounds lacked the D2O exchangeable singlets characteristic for NH2 and N=CH.

In scheme 2, the N-substituted thiocarbamoyl hydrazino derivatives 9a, b was prepared by refluxing the acid hydrazide 2 with aryl isothiocyanate in absolute ethanol. Cyclocondensation of 9a, b with the selected phenacyl bromide or ethyl bromoacetate in ethanol containing anhydrous sodium acetate produced the respective thiazoline derivatives 10a-f, and thiazolidinone derivatives 11a, b respectively. Cyclodesulphurization of 9a, b using mercuric oxide in dry dioxane furnished the target 1,3,4-oxadiazole derivatives 12a, b in good yields.

The structure of the new compounds was elucidated by spectral analysis in addition to microanalysis.

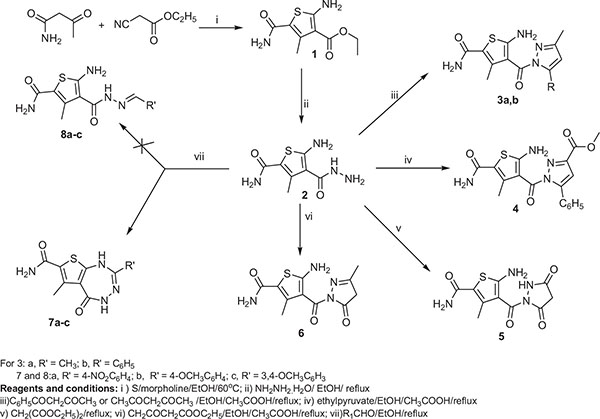

Scheme 1. Synthetic pathways for compounds (1-7).

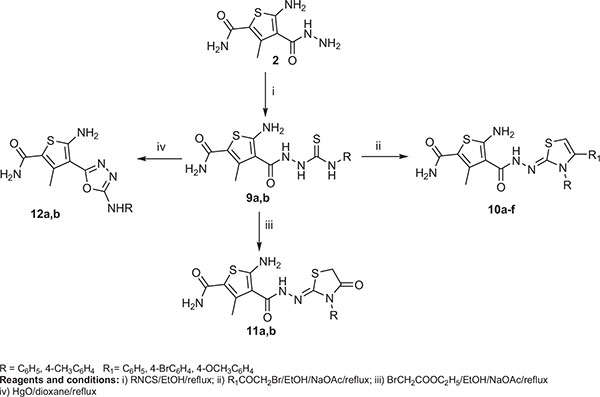

Scheme 2. Synthetic pathways for compounds (9-12).

BIOLOGICAL EVALUATION

Anti-hepatitis C virus activity

Evaluation of Cytotoxicity

All synthesized compounds were investigated for their effect on the proliferative activity of HepG2 cancer cell line, and the IC50 and EC99 in µg/ mL (Table 1) were determined for each test compound using GraphPad Prism.

Table 1.
Preliminary anti-HCV activity of the synthesized compounds 3-12 on HepG 2.
Compound No. IC50a)
(µg/mL) 		EC99b)
(µg/mL) 		Anti-HCV Activityc)
3a 5.64 0.10 positive
3b 6.60 0.12 negative
4 5.50 0.11 negative
5 8.77 0.17 negative
6 14.33 0.27 positive
7a 6.50 0.12 positive
7b 4.37 0.08 positive
7c 10.40 0.20 negative
9a 8.46 0.16 positive
9b 18.16 0.36 positive
10a 6.80 0.13 positive
10b 7.80 0.14 negative
10c 4.20 0.08 negative
10d 5.75 0.11 negative
10e 4.23 0.08 negative
10f 9.45 0.18 negative
11a 5.30 0.10 negative
11b 7.04 0.13 positive
12a 8.10 0.15 negative
12b 12.16 0.23 negative
a) IC50: concentration of the compound that caused 50% death of cells.
b) EC99: concentration of the compound that maintained 90-99% viability of cells.
c) Ability to inhibit the replication of both HCV RNA (+) and (–) strands.
Fig. (1). Agarose gel electrophoresis showing PCR amplified product of HCV RNA (+) and (-) strands in presence of compounds 11a, 7a, 7c3a. Lane 1: molecular weight marker (M) 100bp ladder, lanes 2 and 4 = positive control and lane 3 = negative control. Lanes 5, 7, 9 and 11 show the effect of compounds 11a, 7a, 7c and 3a on HCV RNA (-) strands and lanes 6, 8, 10 and 12 show the effect of compounds 11a, 7a, 7c and 3a on HCV RNA (+) strands isolated from HepG2 cells at the EC99 in µg/mL after 3 days of treatment.

Qualitative In-vitro Anti-HCV Screening

All synthesized compounds were evaluated for their in-vitro anti-HCV activity utilizing the hepatocellular carcinoma HepG2 cell line infected with hepatitis-C virus. Detection of viral (+) and/or (–) RNA strands was performed using qualitative RT-PCR. Detection of the (–) strand HCV-RNA using RT-PCR has been recently reported as a very important tool for understanding the life cycle of HCV. It is the most reliable biological marker for the diagnosis of HCV and monitoring the viral response to antiviral therapy [37].

According to these facts, simultaneous detection of the (+) and/or (–) HCV-RNA strands in HepG2 hepatoma cells infected with HCV was performed. Inhibition of viral replication was detected by amplification of viral RNA segments using the RT-PCR technique, both in the cultivated infected cells alone (as a positive control) and in presence of the specified doses of the test compounds at optimal temperature. An active compound is capable of inhibiting viral replication inside the HepG2 cells, as evidenced by the disappearance of the (+) and/or (–) strands viral RNA-amplified products detected by the RT-PCR (compared to positive control).

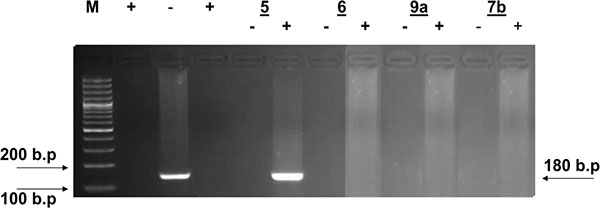

Fig. (2). Agarose gel electrophoresis showing PCR amplified product of HCV RNA (+) and (-) strands in presence of compounds 5, 6, 9a and 7b. Lane 1: molecular weight marker (M) 100bp ladder, lanes 2 and 4 = positive control and lane 3 = negative control. Lanes 5, 7, 9 and 11 show the effect of compounds 5, 6, 9a and 7b on HCV RNA (-) strands and lanes 6, 8, 10 and 12 show the effect of compounds 5, 6, 9a and 7b on HCV RNA (+) strands isolated from HepG2 cells at the EC99 in µg/mL after 3 days of treatment.

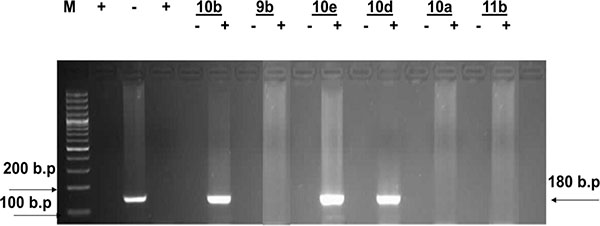

Fig. (3). Agarose gel electrophoresis showing PCR amplified product of HCV RNA (+) and (-) strands in the presence of compounds 10b, 9b, 10e, 10d, 10a and 11b. Lane 1: molecular weight marker (M) 100bp ladder, lanes 2 and 4 = positive control and lane 3 = negative control. Lanes 5, 7, 9, 11, 13 and 15 show the effect of compounds 10b, 9b, 10e, 10d, 10a and 11b on HCV RNA (-) strands and lanes 6, 8, 10, 12, 14 and 16 show the effect of compounds 10b, 9b, 10e, 10d, 10a and 11b on HCV RNA (+) strands isolated from HepG2 cells at the EC99 in µg/mL after 3 days of treatment.

Inspection of (Figs. (1-4) showed that all the synthesized compounds inhibited the replication of HCV RNA (–) strands at the EC99. In addition, eight compounds 3a, 6, 7a, 7b, 9a, 9b, 10a and 11b were proved to inhibit replication of both (+) and (–) strands at very low concentration range (EC99 = 0.08- 0.36 µg/mL) as shown in Table 1. The obtained data revealed that the pyrazolyl derivatives 3a and 6 inhibited the replication of both (+) and (–) strands of HCV RNA at 0.10 and 0.27 µg/mL. Conversion of the acid hydrazide 2 into the dihydro-1H-thieno[2,3-e] [1, 2, 4] triazepine-7-carboxamides 7a and 7b enhanced the activity against both (+) and (–) strands. Transformation of the hydrazide 2 into the N-substituted thiocarbamoylhydrazino derivatives 9a, b yielded compounds that are able to inhibit replication of both (+) and (–) strands at EC99 = 0.16 and 0.36 µg/mL. Finally, cyclization of 2 into the 1,3-thiazolidin-2-ylidene)hydrazino]carbonyl}thiophene-2-carboxamide derivatives 10a and 11b yielded compounds active against both (+) and (–) strands.

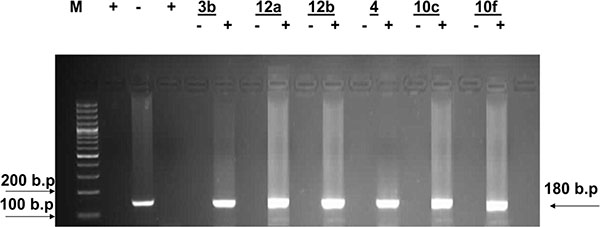

Fig. (4). Agarose gel electrophoresis showing PCR amplified product of HCV RNA (+) and (-) strands in the presence of compounds 3b, 12a, 12b, 4, 10c and 10f. Lane 1: molecular weight marker (M) 100bp ladder, lanes 2 and 4 = positive control and lane 3 = negative control. Lanes 5, 7, 9, 11, 13 and 15 show the effect of compounds 3b, 12a, 12b, 4, 10c and 10f on HCV RNA (-) strands and lanes 6, 8, 10, 12, 14 and 16 show the effect of compounds 3b, 12a, 12b, 4, 10c and 10f on HCV RNA (+) strands isolated from HepG2 cells at the EC99 in µg/mL after 3 days of treatment.

Antimicrobial Screening

The new compounds were investigated for their in vitro antibacterial activity against Gram-positive bacteria as Staphylococcus aureus and Bacillus subtilis, and Gram-negative bacteria as Escherichia coli and Pseudomonas aeruginosa . They were also studied for their in vitro antifungal potential against Candida albicans. The inhibition zones were measured utilizing the cup-diffusion technique [38, 39] and compounds showing reasonable inhibition zones (A ≥13 mm) were further evaluated to determine their minimal inhibitory concentration (MIC) and minimum bacterial concentration (MBC) applying the twofold serial dilution method [39, 40]. Ampicillin was used as antibacterial reference while clotrimazole was used as antifungal standard. Dimethylsulfoxide (DMSO) was used as blank and showed no antimicrobial activity.

Table 2.
The inhibition zones (IZ) in mm diameter of the synthesized compounds 3-12.
Cpd No. S. aureus B. subtilis P. aeroginosa E. coli C. albicans
3a 16 14 12 17 18
3b 17 14 12 15 17
4 16 16 14 12 18
5 18 16 12 18 14
6 14 18 17 16 16
7a 18 14 15 15 14
7b 18 14 16 15 14
7c 14 18 12 14 16
9a 12 12 18 16 18
9b 14 16 18 16 12
10a 12 18 14 16 14
10b 14 14 16 12 14
10c 14 14 18 16 14
10d 18 16 12 14 14
10e 18 18 12 16 14
10f 16 14 15 12 18
11a 18 12 14 14 16
11b 16 14 12 16 14
12a 18 14 12 14 12
12b 14 16 15 14 14
  Aa 9 12 7 10 -
  Cb -c - - - 10
a A: Ampicillin trihydrate (standard broad spectrum antibiotic).
bC: Clotrimazole (standard broad spectrum antifungal agent).
c (–): Totally inactive.

Results from (Tables 2 and 3) revealed that twenty two compounds showed promising inhibitory effects on the growth of the tested Gram-positive and Gram-negative microorganisms with high activity against P. aeruginosa. Regarding the antibacterial activity of the active compounds against S. aureus, compounds 6 and 10a (MIC = 25 µg/mL) exhibited moderate activity, whereas the other compounds displayed weak activity. Concerning the activity against B. subtilis, compounds 5, 7c and 10a (MIC = 25 µg/mL) displayed half the activity of ampicillin while compounds 3a, 6, 10f and 11a were four times less active than ampicillin against the same organism. While, P. aeruginosa was proved to be the most sensitive microorganism to most of the tested compounds. Compounds 3b, 5, 7b, 10b, 11a and 11b (MIC = 25 µg /mL) showed double the activity of ampicillin, whereas compounds 4, 7a, 9a, 9b, 10c, 10d, 10e, 11b, 12a and 12b were equipotent to ampicillin. Furthermore, compounds 7c, 9a, 10d, 10f, 11a, 11b and 12b (MIC = 25 µg /mL) showed nearly half the activity of ampicillin against E. coli, meanwhile other compounds showed moderate to mild activity. On the other hand, only three compounds 3b, 4 and 10b produced moderate growth inhibition (MIC = 25 µg /mL) against C. Albicans. According to the MIC and MBC limits derived from the latest National Committee on Clinical Laboratory Standards (NCCLS), it can be decided whether the compound is bactericidal or bacteriostatic. Consequently, data from (Table 3) revealed that only compounds 10d, 11a and 12a were bactericidal against P. aeruginosa while the other compounds were bacteriostatic against the test organisms.

Table 3.
Minimum inhibitory concentrations (MIC) and minimum bactericidal concentrations (MBC) of the synthesized compounds 3-12 in µg/mL.
Cpd No. S. aureus B.subtilis P.aeruginosa E.coli C.albicans
MIC MBC MIC MBC MIC MBC MIC MBC MIC MBC
3a 100 100 50 100 100 100 100 200 50 100
3b 50 100 100 200 25 50 50 50 25 50
4 100 100 100 100 50 100 50 100 25 25
5 100 100 25 50 25 50 50 100 50 50
6 25 50 50 50 100 200 50 100 100 100
7a 100 200 100 100 50 100 100 100 50 100
7b 50 50 100 100 25 50 50 100 100 100
7c 100 200 25 50 100 100 25 50 100 100
9a 100 100 100 200 50 100 25 50 50 100
9b 50 50 100 100 50 100 50 100 50 50
10a 25 50 25 100 100 100 50 100 100 100
10b 50 100 100 200 25 50 100 100 25 50
10c 100 100 100 200 50 100 100 200 100 100
10d 100 100 100 100 50 50 25 50 50 100
10e 50 100 100 200 50 100 100 100 50 100
10f 100 200 50 100 100 100 25 50 100 200
11a 100 200 50 50 25 25 25 50 50 100
11b 100 100 100 100 25 100 25 25 50 100
12a 50 100 100 100 50 50 100 200 50 100
12b 100 100 100 100 50 100 25 25 50 100
Aa 5 - 12.5 - 50 - 10 - - -
Cb -c - - - - - 5 -
a A: Ampicillin trihydrate (standard broad spectrum antibiotic).
bC: Clotrimazole (standard broad spectrum antifungal agent).
c (–): Totally inactive (MIC > 200 µg/mL).

The activity of the test compounds could be tentatively correlated to the structural variations and modification. The pyrazolyl derivatives 3b and 5. showed potent activity against P. aeroginosa (MIC = 25 µg/mL), while compound 5 showed good activity against B. subtilis (MIC = 25 µg/mL). Whereas, the triazepine derivatives 7a and 7b exhibited substantial activity against P. aeroginosa (MIC = 50 and 25µg/mL respectively). Meanwhile, the triazepine derivative 7c displayed moderate activity against B. Subtilis and E. Coli (MIC = 25 µg/mL). Cyclization of N-substituted thiocarbamoyl hydrazino derivatives 9a, b into the corresponding thiazoline derivatives 10a-f, and thiazolidinone derivatives 11a,b didn't significantly affect the antimicrobial potential except for compounds 10b, 10d, 10f, 11a and 11b that showed activity against Gram-negative microorganisms while compound 10a showed activity against Gram-positive microorganisms.

CONCLUSION

In the present study, twenty new 5-amino-4-substituted-3-methylthiophene-2-carboxamide derivatives were prepared and their chemical structures were confirmed by spectral analyses in addition to elemental analyses. All compounds were investigated for their preliminary in-vitro effect on the replication of hepatitis-C virus (HCV) in HepG2 hepatocellular carcinoma cell line infected with the virus using the reverse transcription polymerase chain reaction technique. All compounds were found to inhibit the replication of HCV RNA (–) strands at the EC99, meanwhile, eight compounds (3a, 6, 7a, 7b, 9a, 9b, 10a and 11b) were proved to inhibit replication of both (+) and (–) strands at very low concentration range (EC99 = 0.08- 0.36 µg/mL).

Moreover, all compounds exhibited remarkable activity against the tested microorganisms with high activity against the gram-negative organism P. aeruginosa. Compounds 3b, 5, 7b, 10b and 11a and 11b emerged with the highest potential against P. aeruginosa as they displayed double the activity of ampicillin against this organism. Collectively, the triazepine derivative 7b and the thiazolidinone derivative 11b could be considered as the most active compounds in this study with an interesting dual anti-HCV and antimicrobial profile.

Finally, the obtained anti-HCV and antimicrobial data suggest that the 3-methylthiophene-2-carboxamide might be a potential skeleton for further development of more active and selective compounds with antihepatitis-C and/ or antimicrobial activities.

DECLARATION/CONFLICT OF INTEREST

The authors declared no conflicts of interest. The authors alone are responsible for the content and writing of the paper.

ACKNOWLEDGEMENTS

Declared none

REFERENCES

1
Shepard, C.W.; Finelli, L.; Alter, M.J. Global epidemiology of hepatitis C virus infection. Lancet Infect. Dis., 2005, 5(9), 558-567.
[PubMed Link]
2
Alter, M.J.; Kruszon-Moran, D.; Nainan, O.V.; McQuillan, G.M.; Gao, F.; Moyer, L.A.; Kaslow, R.A.; Margolis, H.S. The prevalence of hepatitis C virus infection in the United States, 1988 through 1994. N. Engl. J. Med., 1999, 341(8), 556-562.
[PubMed Link]
3
Lehman, E.M.; Wilson, M.L. Epidemic hepatitis C virus infection in Egypt: estimates of past incidence and future morbidity and mortality. J. Viral Hepat., 2009, 16(9), 650-658.
[PubMed Link]
4
Goins, W.F. Microbial Pathogenesis: A Principles-Oriented Approach; McClane, B.A.; Mietzner, T.A., Eds.; Fence Creek Publishing: Madison, 1999, p. 395.
5
Hoofnagle, J.H. A step forward in therapy for hepatitis C. N. Engl. J. Med., 2009, 360(18), 1899-1901.
[PubMed Link]
6
Jackson, R.W.; LaPorte, M.G.; Herbertz, T.; Draper, T.L.; Gaboury, J.A.; Rippin, S.R.; Patel, R.; Chunduru, S.K.; Benetatos, C.A.; Young, D.C.; Burns, C.J.; Condon, S.M. The discovery and structure-activity relationships of pyrano[3,4-b]indole-based inhibitors of hepatitis C virus NS5B polymerase. Bioorg. Med. Chem. Lett., 2011, 21(11), 3227-3231.
[PubMed Link]
7
Masunari, A.; Tavares, L.C. A new class of nifuroxazide analogues: synthesis of 5-nitrothiophene derivatives with antimicrobial activity against multidrug-resistant Staphylococcus aureus. Bioorg. Med. Chem., 2007, 15(12), 4229-4236.
[PubMed Link]
8
Foroumadi, A.; Oboudiat, M.; Emami, S.; Karimollah, A.; Saghaee, L.; Moshafi, M.H.; Shafiee, A. Synthesis and antibacterial activity of N-[2-[5-(methylthio)thiophen-2-yl]-2-oxoethyl] and N-[2-[5-(methylthio)thiophen-2-yl]-2-(oxyimino)ethyl] piperazinylquinolone derivatives. Bioorg. Med. Chem., 2006, 14(10), 3421-3427.
[PubMed Link]
9
Romagnoli, R.; Baraldi, P.G.; Carrion, M.D.; Cara, C.L.; Cruz-Lopez, O.; Preti, D.; Tolomeo, M.; Grimaudo, S.; Di Cristina, A.; Zonta, N.; Balzarini, J.; Brancale, A.; Sarkar, T.; Hamel, E. Design, synthesis, and biological evaluation of thiophene analogues of chalcones. Bioorg. Med. Chem., 2008, 16(10), 5367-5376.
[PubMed Link]
10
Shiradkar, M.R.; Padhalingappa, M.B.; Bhetalabhotala, S.; Akula, K.C.; Tupe, D.A.; Pinninti, R.R.; Thummanagoti, S. A novel approach to cyclin-dependent kinase 5/p25 inhibitors: A potential treatment for Alzheimers disease. Bioorg. Med. Chem., 2007, 15(19), 6397-6406.
[PubMed Link]
11
Chabert, J.F.; Marquez, B.; Neville, L.; Joucla, L.; Broussous, S.; Bouhours, P.; David, E. Synthesis and evaluation of new arylbenzo[b]thiophene and diarylthiophene derivatives as inhibitors of the Nor A multidrug transporter of Staphylococcus aureus. Bioorg. Med. Chem., 2007, 15, 4482-4497.
[PubMed Link]
12
Hossan, A.S.; Abu-Melha, H.M.; Al-Omar, M.A.; Amr, Ael-G. Synthesis and antimicrobial activity of some new pyrimidinone and oxazinone derivatives fused with thiophene rings using 2-chloro-6-ethoxy-4-acetylpyridine as starting material. Molecules, 2012, 17(11), 13642-13655.
[PubMed Link]
13
Al-Omar, M.A. Synthesis and antimicrobial activity of new 5-(2-thienyl)-1,2,4-triazoles and 5-(2-thienyl)-1,3,4-oxadiazoles and related derivatives. Molecules, 2010, 15(1), 502-514.
[PubMed Link]
14
Moreau, B.; O’Meara, J. A.; Bordeleau, J.; Garneau, M.; Godbout, C.; Moreau, B.; OMeara, J.A.; Bordeleau, J.; Garneau, M.; Godbout, C.; Gorys, V.; Leblanc, M.; Villemure, E.; White, P.W.; Llinàs-Brunet, M. Discovery of hepatitis C virus NS34A protease inhibitors with improved barrier to resistance and favorable liver distribution. J. Med. Chem., 2014, 57(5), 1770-1776.
[PubMed Link]
15
Arora, P.; Narang, R.; Bhatia, S.; Nayak, S. K.; Singh, S. K.; Narasimhan, B. Synthesis, molecular docking and QSAR studies of 2, 4- disubstituted thiazoles as antimicrobial agents. J. Appl. Pharm. Sci., 2015, 5(02), 028-042.
16
Sharma, P.K.; Chandak, N.; Kumar, P.; Sharma, C.; Aneja, K.R. Synthesis and biological evaluation of some 4-functionalized-pyrazoles as antimicrobial agents. Eur. J. Med. Chem., 2011, 46(4), 1425-1432.
[PubMed Link]
17
Padmavathi, V.; Sudhakar Reddy, G.; Padmaja, A.; Kondaiah, P.; Ali-Shazia, Synthesis, antimicrobial and cytotoxic activities of 1,3,4-oxadiazoles, 1,3,4-thiadiazoles and 1,2,4-triazoles. Eur. J. Med. Chem., 2009, 44(5), 2106-2112.
[PubMed Link]
18
El-Emam, A.A.; Al-Deeb, O.A.; Al-Omar, M.; Lehmann, J. Synthesis, antimicrobial, and anti-HIV-1 activity of certain 5-(1-adamantyl)-2-substituted thio-1,3,4-oxadiazoles and 5-(1-adamantyl)-3-substituted aminomethyl-1,3,4-oxadiazoline-2-thiones. Bioorg. Med. Chem., 2004, 12(19), 5107-5113.
[PubMed Link]
19
Al-Saadi, M.S.; Rostom, S.A.; Faidallah, H.M. In vitro antitumor screening of some polysubstituted pyrazole analogs. Saudi Pharm. J., 2005, 13, 88-96.
20
Qian, X.; Li, Z.; Yang, Q. Highly efficient antitumor agents of heterocycles containing sulfur atom: linear and angular thiazonaphthalimides against human lung cancer cell in vitro. Bioorg. Med. Chem., 2007, 15(21), 6846-6851.
[PubMed Link]
21
Aboraia, A.S.; Abdel-Rahman, H.M.; Mahfouz, N.M.; El-Gendy, M.A. Novel 5-(2-hydroxyphenyl)-3-substituted-2,3-dihydro-1,3,4-oxadiazole-2-thione derivatives: promising anticancer agents. Bioorg. Med. Chem., 2006, 14(4), 1236-1246.
[PubMed Link]
22
Desai, N.C.; Bhatt, N.; Somani, H.; Trivedi, A. Synthesis, antimicrobial and cytotoxic activities of some novel thiazole clubbed 1,3,4-oxadiazoles. Eur. J. Med. Chem., 2013, 67, 54-59.
[PubMed Link]
23
Hamdy, N.A.; El-Senousy, W.M. Synthesis and antiviral evalution of some novel pyrazoles and pyrazolo[3,4-d]pyridazines bearing 5,6,7,8-tetrahydronaphthalene. Acta Pol. Pharm., 2013, 70(1), 99-110.
[PubMed Link]
24
Li, Z.; Zhan, P.; Liu, X. 1,3,4-oxadiazole: a privileged structure in antiviral agents. Mini Rev. Med. Chem., 2011, 11(13), 1130-1142.
[PubMed Link]
25
Riyadh, S.M.; Farghaly, T.A.; Abdallah, M.A.; Abdalla, M.M.; Abd El-Aziz, M.R. New pyrazoles incorporating pyrazolylpyrazole moiety: synthesis, anti-HCV and antitumor activity. Eur. J. Med. Chem., 2010, 45(3), 1042-1050.
[PubMed Link]
26
El-Sayed, W.A.; El-Essawy, F.A.; Ali, O.M.; Nasr, B.S.; Abdalla, M.M.; Abdel-Rahman, A.A Synthesis and antiviral evaluation of new 2,5-disubstituted 1,3,4-oxadiazole derivatives and their acyclic nucleoside analogues. Monatsh. Chem., 2010, 141, 1021-1028.
27
Srivastava, P.C.; Pickering, M.V.; Allen, L.B.; Streeter, D.G.; Campbell, M.T.; Witkowski, J.T.; Sidwell, R.W.; Robins, R.K. Synthesis and antiviral activity of certain thiazole C-nucleosides. J. Med. Chem., 1977, 20(2), 256-262.
[PubMed Link]
28
Yan, L.; Wu, J.; Chen, H.; Zhang, S.; Wang, Z.; Wang, H.; Wu, F. Synthesis and in vitro antibacterial activity of novel fluoroalkyl-substituted pyrazolyl oxazolidinones. RSC Advances, 2015, 5, 73660-73669.
29
Kesornpun, C.; Aree, T.; Mahidol, C.; Ruchirawat, S.; Kittakoop, P. water-assisted nitrile oxide cycloadditions: synthesis of isoxazoles and stereoselective syntheses of isoxazolines and 1,2,4-oxadiazoles. Angew. Chem. Int. Ed. Engl., 2016, 55(12), 3997-4001.
[PubMed Link]
30
Li, Z.; Qiu, Q.; Xu, X.; Wang, X.; Jiao, L.; Su, X.; Pan, M.; Huang, W.; Qian, H. Design, synthesis and structure-activity relationship studies of new thiazole-based free fatty acid receptor 1 agonists for the treatment of type 2 diabetes. Eur. J. Med. Chem., 2016, 113, 246-257.
[PubMed Link]
31
Bueno, J.M.; Carda, M.; Crespo, B.; Cuñat, A.C.; de Cozar, C.; León, M.L.; Marco, J.A.; Roda, N.; Sanz-Cervera, J.F. Design, synthesis and antimalarial evaluation of novel thiazole derivatives. Bioorg. Med. Chem. Lett., 2016, 26(16), 3938-3944.
[PubMed Link]
32
Gütschow, M.; Kuerschner, L.; Neumann, U.; Pietsch, M.; Löser, R.; Koglin, N.; Eger, K. 2-(diethylamino)thieno1,3ŏxazin-4-ones as stable inhibitors of human leukocyte elastase. J. Med. Chem., 1999, 42(26), 5437-5447.
[PubMed Link]
33
Repetto, G.; del Peso, A.; Zurita, J.L. Neutral red uptake assay for the estimation of cell viability/cytotoxicity. Nat. Protoc., 2008, 3(7), 1125-1131.
[PubMed Link]
34
Fotakis, G.; Timbrell, J.A. In vitro cytotoxicity assays: Comparison of LDH, neutral red, MTT and protein assay in hepatoma cell lines following exposure to cadmium chloride. Toxicol. Lett., 2006, 160(2), 171-177.
[PubMed Link]
35
de Oliveira-Pierce, A.N.; Zhang, R.; Machu, T.K. Colchicine: A novel positive allosteric modulator of the human 5-hydroxytryptamine 3A receptor. J. Pharmacol. Exp. Ther., 2009, 329(2), 838-847.
[PubMed Link]
36
Kato, N.; Ikeda, M.; Mizutani, T.; Sugiyama, K.; Noguchi, M.; Hirohashi, S.; Shimotohno, K. Replication of hepatitis C virus in cultured non-neoplastic human hepatocytes. Jpn. J. Cancer Res., 1996, 87(8), 787-792.
[PubMed Link]
37
El-Awady, M.K.; Ismail, S.M.; El-Sagheer, M.; Sabour, Y.A.; Amr, K.S.; Zaki, E.A. Assay for hepatitis C virus in peripheral blood mononuclear cells enhances sensitivity of diagnosis and monitoring of HCV-associated hepatitis. Clin. Chim. Acta, 1999, 283(1-2), 1-14.
[PubMed Link]
38
Jain, S.R.; Kar, A. The antibacterial activity of some essential oils and their combinations. Planta Med., 1971, 20(2), 118-123.
[PubMed Link]
39
Rostom, S.A.; Badr, M.H.; Abd El Razik, H.A.; Ashour, H.M.; Abdel Wahab, A.E. Synthesis of some pyrazolines and pyrimidines derived from polymethoxy chalcones as anticancer and antimicrobial agents. Arch. Pharm. (Weinheim), 2011, 344(9), 572-587.
[PubMed Link]
40
Scott, A.C. Laboratory control of antimicrobial therapy. In: Mackie and McCartney Practical Medical Microbiology, 13th ed.; Colle, J.G.; Duguid, J.P.; Fraser, A.G.; Marmion, B.P., Eds.; Churchill Livingstone: Edinburgh, 1989; Vol. 2, pp. 161-181.
